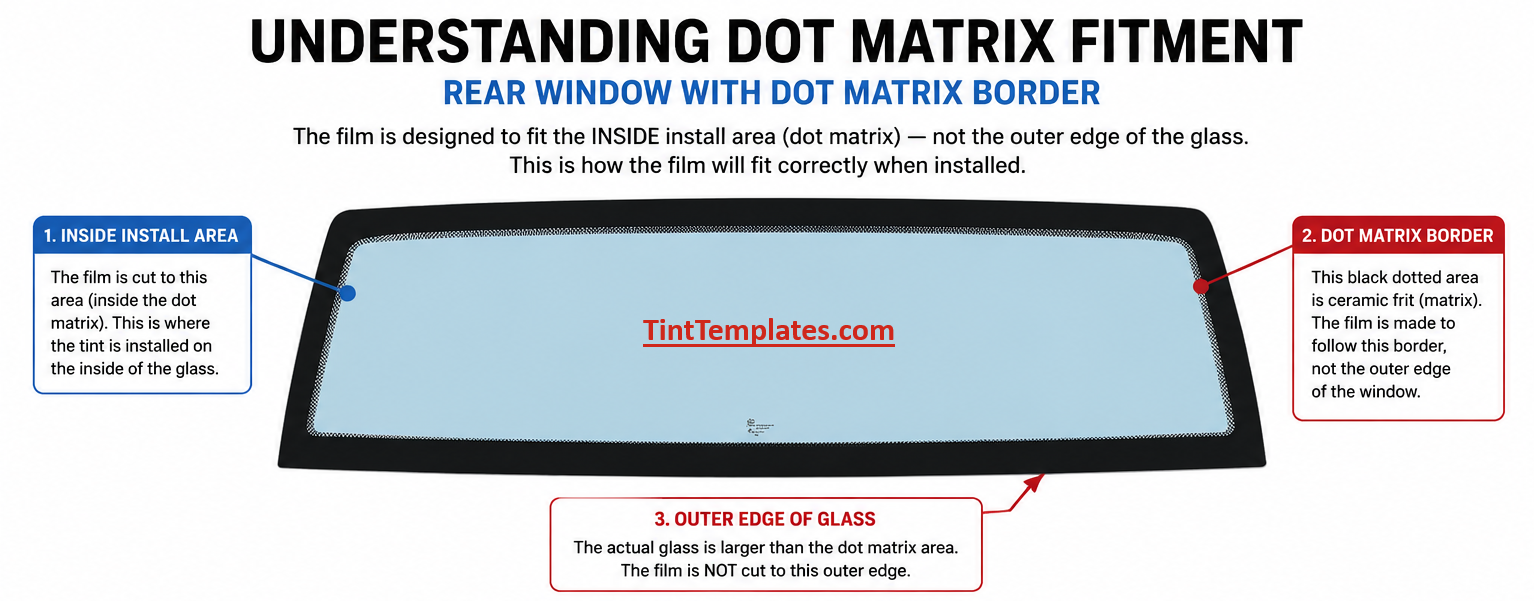

What Is a Dot Matrix Border?
Many rear windows include a black dotted ceramic border around the edge of the glass. This area is called the dot matrix or ceramic frit. It helps with adhesion, UV protection, and appearance from the factory.
On many vehicles the actual visible glass extends beyond this matrix border.
Why the Template Looks Smaller
Window tint film is designed to fit the inside install area of the glass, following the dot matrix border, not the full outer edge of the window.
During installation:
Film is usually heat shrunk and test-fitted on the outside of the window.
However, the tint is ultimately installed on the inside of the glass.
Because of this, templates are intentionally designed to align with the usable install area inside the matrix border.
This means the template may appear slightly smaller if you compare it directly to the full outer dimensions of the glass.
Correct vs Incorrect Fitment
Correct Fitment
A proper template fit:
Aligns with the inside matrix border
Leaves a clean finished edge
Prevents peeling and light gaps
Matches the actual install area
Incorrect Fitment
If a template is cut to the full outer edge of the glass:
The film may overlap onto the ceramic frit area
Edges may not lay correctly
Light gaps and adhesion problems can occur
Final appearance may be inconsistent
Important Installation Note
The dot matrix border should always be considered when checking template sizing. On many rear windows, especially slider and truck rear glass, the template is intentionally sized to fit the inside visible install area rather than the outer glass perimeter.
If you are unsure whether your template is fitting correctly:
Verify the exact vehicle model and trim
Compare fitment from the inside install perspective
Check alignment against the dot matrix border rather than the outer edge of the glass
Need Assistance?
If you are still experiencing fitment concerns, feel free to contact us with:
Your vehicle year, make, model, and trim
Photos of the window and template alignment
Which specific windows are affected
We’re always happy to review fitment and help ensure you receive the correct template pack for your vehicle.
